HIGH-MAG,HIGH-RESOLUTION,LARGE-FORMAT LINE SCAN LENS

PRODUCT FEATURES:
Ultra-Low Distortion Design,AR/NIR Coating
Magnification Rage Range is Wide and Adjustable,Support Different Type Mount
High Resolution Design:150Ip/mm,Support 3.5μm Pixel Large-Format Camera
Focus Length Range From 28mm～135mm Can Support Most of Requirements




Product details

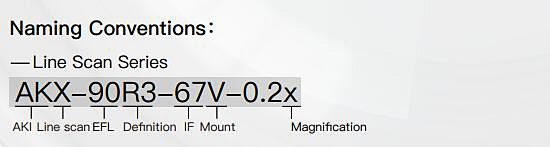

PRODUCT PARAMETERS


Model Name
WD
(mm)
Magnification
(x)
IF
(x)
Fno
EFL
(mm)
TV Distortion
(%)
MTF
(Ip/mm)
Pixel
(μm)
Lens Size
(mm)
Mount
Adaptation Camera
AKX-66R3-58V 500-750
 0.086-0.11
 58
 4.5-22
 66
 ≤0.17
 150
 3.5 φ93x133
 V70
 16k 3.5μm/70M
AKX-90R3-67V-0.2x 460-655
 0.15-0.22
 67
 4.0-22
 93
 ≤0.10
 150
 3.5 φ76x88
 V70 16k 3.5μm/151M
AKX-90R3-67V-0.3x 310-375
 0.28-0.35
 67
 4.0-22
 93
 ≤0.10
 150
 3.5 φ76x99
 V70
 16k 3.5μm/151M
AKX-90R3-67V-0.45x 240-280
 0.40-0.48
 67
 4.0-22
 93
 ≤0.10
 150
 3.5 φ76x115
 V70 16k 3.5μm/151M
AKX-90R3-62GV-0.7x 180
 0.70
 62.5
 2.8-22
 98 ≤0.01
 150
 3.5 φ84x170
 V74
 16k 3.5μm
AKX-90R3-62GV-1.75x 96
 1.75 62.5
 2.8-22
 98
 ≤0.02
 150
 3.5 φ84x230
 V74 16k 3.5μm
AKX-110R5-84CGV-2.0x 90
 2.0
 84 2.9-8.0
 109
 ≤0.10
 130
 3.5 φ80x378
 V70
 23k 3.5μm/151M
AKX-120R5-84CGV-1.67x 120
 1.67
 84
 2.7-8.0
 120
 ≤0.028
 150
 3.5 φ80x379
 V70 23k 3.5μm/151M
AKX-120R5-82CGV-2.5x 105
 2.5
 82
 2.5-22
 120
 ≤0.05
 100
 3.5 φ76x420
 V70
 23k 3.5μm/151M
AKX-120R5-82CGV-3.5x 90
 3.5
 84
 1.2-80
 122.5
 ≤0.028
 100
 3.5 φ95x338
 V92 23k 3.5μm/151M
AKX-135R3-82V-0.3x 328
 0.3
 82
 3.8-22
 134
 ≤0.10
 130 5 φ76x93
 V70
 16k 5μm1510M
AKX-135R3-82V-0.5x 328
 0.5
 82
 3.8-22
 134 ≤0.10
 130
 5 φ76x95
 V70 16k 5μm/151M
AKX-135R3-82V-0.75x 328
 0.75
 82
 3.8-22
 134 ≤0.10
 130
 5 φ76x92
 V70
 16k 5μm/151M




INTERFACE CONVERSION


Interface Model
Extension Ring
Extension Ring
Extension Ring
More
AKJ-F — — — —
AKJ-M42 AKJ-M42L5 AKJ-M42L10 AKJ-M42L20 Customizing
AKJ-M58 AKJ-M58L5 AKJ-M58L10 AKJ-M58L20 Customizing
AKJ-M72 AKJ-M72L5 AKJ-M72L10 AKJ-M72L20 Customizing
AKJ-M95 — AKJ-M95L10 AKJ-M95L20 Customizing

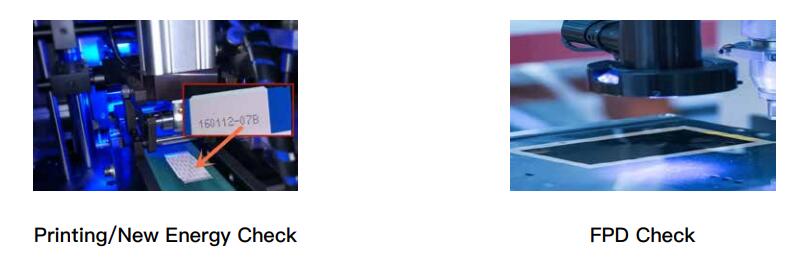

PRODUCT ADAPTATION FIELD
