1.1 ULTRA-CLEAR CCTV LENS

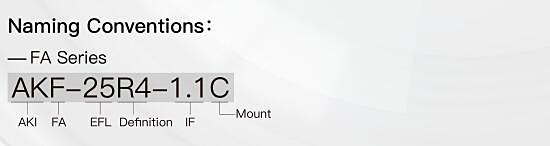

| Model Name |
WD
(mm)
|
Magnification
(x)
|
IF | Fno |
EFL
(mm)
|
TV Distortion
(%)
|
MTF
(Ip/mm)
|
Pixel
(μm)
|
Mount |
Lens Size
(mm)
|
Filter Size
(mm)
|
| AKF-12R4-1.1C | 95 | 0.120 | 1.1” | 1.6-16 | 12 | ≤2.10 |
150 |
3.5 | C | φ40x66 | M35.5x0.5 |
| AKF-16R4-1.1C | 95 | 0.145 | 1.1” |
1.6-16 |
16 |
≤0.80 |
150 |
3.5 |
C |
φ40x68 |
M35.5x0.5 |
| AKF-25R4-1.1C | 95 | 0.220 | 1.1” | 1.6-16 | 25 | ≤0.05 |
150 |
3.5 | C | φ42x67 | M37x0.75 |
| AKF-35R4-1.1C | 190 | 0.194 | 1.1” |
1.8-16 |
35 |
≤0.10 |
150 |
3.5 |
C |
φ40x55 |
M35.5x0.5 |
| AKF-50R4-1.1C | 295 | 0.198 | 1.1” | 2.0-16 | 50 | ≤0.10 |
150 |
3.5 | C | φ40x60 | M30.5x0.5 |
| AKT-05R4-1.1C | >500 | 0.011 | 1.1” |
2.8-16 |
5 |
≤0.27 |
150 |
3.5 |
C |
φ40x57 |
M35.5x0.5 |
| AKT-25R4-1.1C | >2000 | 0.012 | 1.1” | 2.8-16 | 25 | ≤0.15 |
150 |
3.5 | C | φ32x39 | M30.5x0.5 |
| AKT-35R4-1.1C | >2000 | 0.017 | 1.1” |
2.8-16 |
35 |
≤0.18 |
150 |
3.5 |
C |
φ32x47 |
M30.5x0.5 |
| AKT-50R4-1.1C | >2000 | 0.025 | 1.1” | 2.8-16 | 50 | ≤0.17 |
150 |
3.5 | C | φ32x58 | M30.5x0.5 |
| AKT-75R4-1.1C | >2000 | 0.039 | 1.1” |
2.8-16 |
75 |
≤0.18 |
150 |
3.5 |
C |
φ38x65 |
M35.5x0.5 |
|
Model Name |
Comparison of Different Target Field of View |
||
|
1.1"
|
2/3"
|
1/2"
|
|
| AKF-12R4-1.1C | 117.5*85.8 | 73.3*55.1 | 53.3*40.1 |
| AKF-16R4-1.1C | 97.2*71.1 | 60.7*45.5 | 44.1*33.1 |
| AKF-25R4-1.1C | 64.1*46.8 | 40.1*30.1 | 29.1*21.8 |
| AKF-35R4-1.1C | 72.7*53.1 | 45.4*34.1 | 33.1*24.7 |
| AKF-50R4-1.1C | 71.2*52.1 | 44.4*33.3 | 32.3*24.2 |
