1.1 ULTRA-CLEAR MACRO LENS

PRODUCT FEATURES:
UItra-Low Distortion Design,AR/NIR Cocating
Magnification Rate Range 0.06x～0.45x Adjustable
High Resolution Design:200Ip/mm,Matching 2.2μm Pixels Size, 20 Million Pixels,Maximum support 1.2" Image Size
Anti-Vibration Design,Support 5G Vibration Environment Application




Product details

PRODUCT PARAMETERS

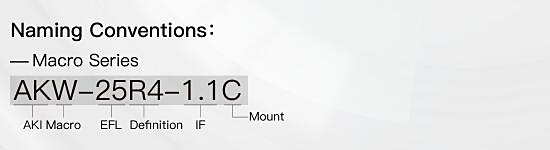

Model Name
WD
(mm)
Magnification
(x)
IF Fno
EFL
(mm)
TV Distortion
(%)
MTF
(Ip/mm)
Pixel
(μm)
Mount
Lens Size
(mm)
Filter Size
(mm)
AKW-16R4-1.0C 150-550
 0.095x~0.029
 1.0 ”
 4.0
 16
 ≤0.07
 200
 2.4
 C
 φ32x40
 M25.5x0.5
AKW-25R4-1.0C 200-700
 0.122x-0.035
 1.0 ”
 4.0
 25
 ≤0.08
 200
 2.4
 C
 φ32x35
 M25.5x0.5
AKW-35R4-1.0C 150-550
 0.274x-0.063
 1.0 ”
 4.0
 35
 ≤0.09
 200
 2.4
 C
 φ32x41
 M25.5x0.5
AKW-25R4-1.1C 65-400
 0.32x-0.06
 1.2”
 1.8-16
 25
 ≤0.10
 200
 2.4
 C
 φ42x62
 M35.5x0.5
AKW-35R4-1.1C 145-590
 0.26x-0.06
 1.2"
 1.8-16
 35
 ≤0.11
 200
 2.4
 C
 φ35x43
 M30.5x0.5
AKW-40R3-1.2C 75-144
 0.30x-1.0
 1.2"
 4.5-32
 43
 ≤0.01
 150
 3.5
 C
 φ44x79
 M30.5x0.5
AKW-50R4-1.1C 175-600
 0.29x-0.06
 1.2"
 2.0-16
 50
 ≤0.10
 200
 2.4
 C
 φ40x70
 M35.5x0.5
AKW-75R4-1.1C 200-500
 0.464x-0.163
 1.2"
 2.8-16
 75
 ≤0.035
 200
 2.4
 C
 φ40x82
 M37x0.75
AKW-90R4-1.1C 325-400
 0.45-0.33
 1.2"
 2.8-16
 90
 ≤0.08
 200
 2.4
 C
 φ40x96
 M34x0.5




FOV(mm)


Model Name
WD
Min.(mm)
Magnification
Max.(x)
FOV
(mm)
WD
Max.(mm)
Magnification
Min.(x)
FOV
(mm)
AKW-16R4-1.0C 150 0.095 134.7*101.1 550 0.029 441.4*331.0
AKW-25R4-1.0C 200 0.122 104.9*78.7 700 0.035 365.7*274.3
AKW-35R4-1.0C 150 0.274 46.7*35 550 0.063 203.2*152.4
AKW-25R4-1.1C 65 0.32 44.1*32.2 400 0.06 235.0*171.7
AKW-35R4-1.1C 145 0.25 56.4*41.2 590 0.06 235.0*171.7
AKW-40R3-1.2C 75 1.0 14.1*10.3 144 0.3 47.0*34.3
AKW-50R4-1.1C 175 0.29 48.6*35.5 600 0.06 235.0*171.7
AKW-75R4-1.1C 200 0.464 30.4*22.2 500 0.163 86.5*63.2
AKW-90R4-1.1C 325 0.45 31.3*22.9 400 0.33 42.7*31.2




PRODUCT ADAPTATION FIELD
