2/3 HR MACRO LENS

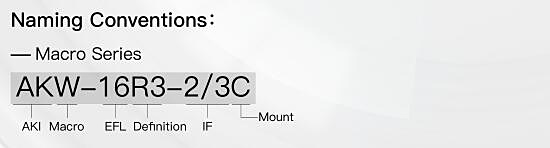

| Model Name |
WD
(mm)
|
Magnification
(x)
|
IF | Fno |
EFL
(mm)
|
TV Distortion
(%)
|
MTF
(Ip/mm)
|
Pixel
(μm)
|
Mount |
Lens Size
(mm)
|
Filter Size
(mm)
|
| AKW-16R3-2/3C | 70-315 | 0.20-0.05 | 2/3” | 2.5-16 | 16 | ≤0.10 |
130 |
3.8 | C | φ32x29 | M27x0.5 |
| AKW-25R3-2/3C | 65-260 | 0.41-0.11 | 2/3” |
2.6-16 |
25 |
≤0.05 |
130 |
3.8 |
C |
φ32x36 |
M27x0.5 |
| AKW-35R3-2/3C |
50-140 |
0.70-0.25 |
2/3” |
3.5-16 |
35 |
≤0.05 |
130 |
3.8 |
C |
φ32x54 |
M27x0.5 |
| AKW-50R3-2/3C |
110-150 |
0.80-0.50 |
2/3” |
3.0-16 |
50 |
≤0.06 |
130 |
3.8 |
C |
φ32x62 |
M27x0.5 |
| AKW-75R3-2/3C |
270-490 |
0.39-0.19 |
2/3” |
4.0-16 |
75 |
≤0.08 |
130 |
3.8 |
C |
φ32x69 |
M27x0.5 |
| Model Name |
WD
Min.(mm)
|
Magnification
Max.(x)
|
FOV
(mm)
|
WD
Max.(mm)
|
Magnification
Min.(x)
|
FOV
(mm)
|
| AKW-16R3-2/3C | 70 | 0.20 | 44.0*33.0 | 315 | 0.05 | 176.0*132.0 |
| AKW-25R3-2/3C | 65 | 0.41 | 21.5*16.1 | 260 | 0.11 | 80.0*60.0 |
| AKW-35R3-2/3C | 50 | 0.70 | 12.6*9.43 | 140 | 0.25 | 35.2*26.4 |
| AKW-50R3-2/3C | 110 | 0.80 | 11.0*8.25 | 150 | 0.50 | 17.6*13.2 |
| AKW-75R3-2/3C | 270 | 0.39 | 22.6*16.9 | 490 | 0.19 | 46.3*34.7 |
